Description

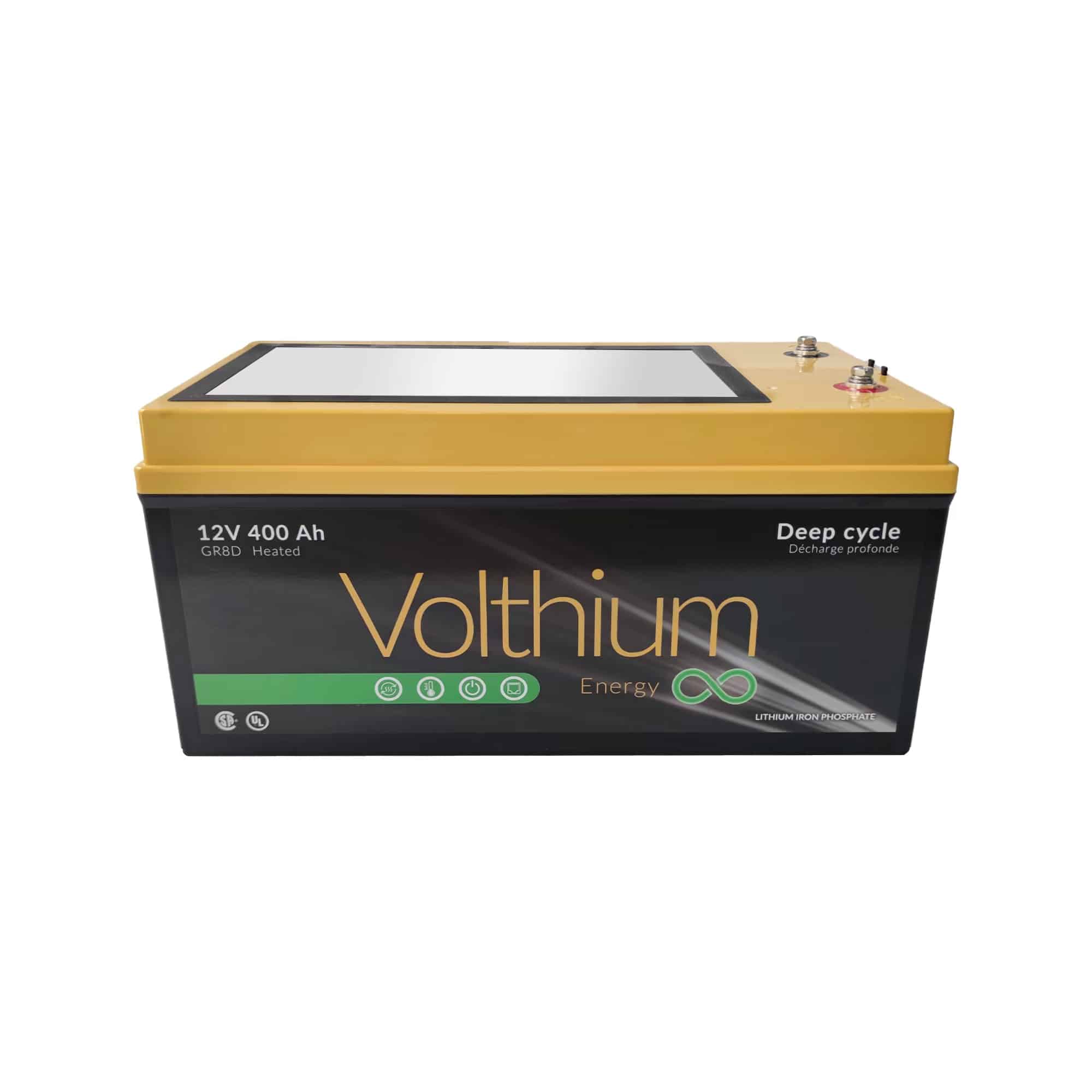

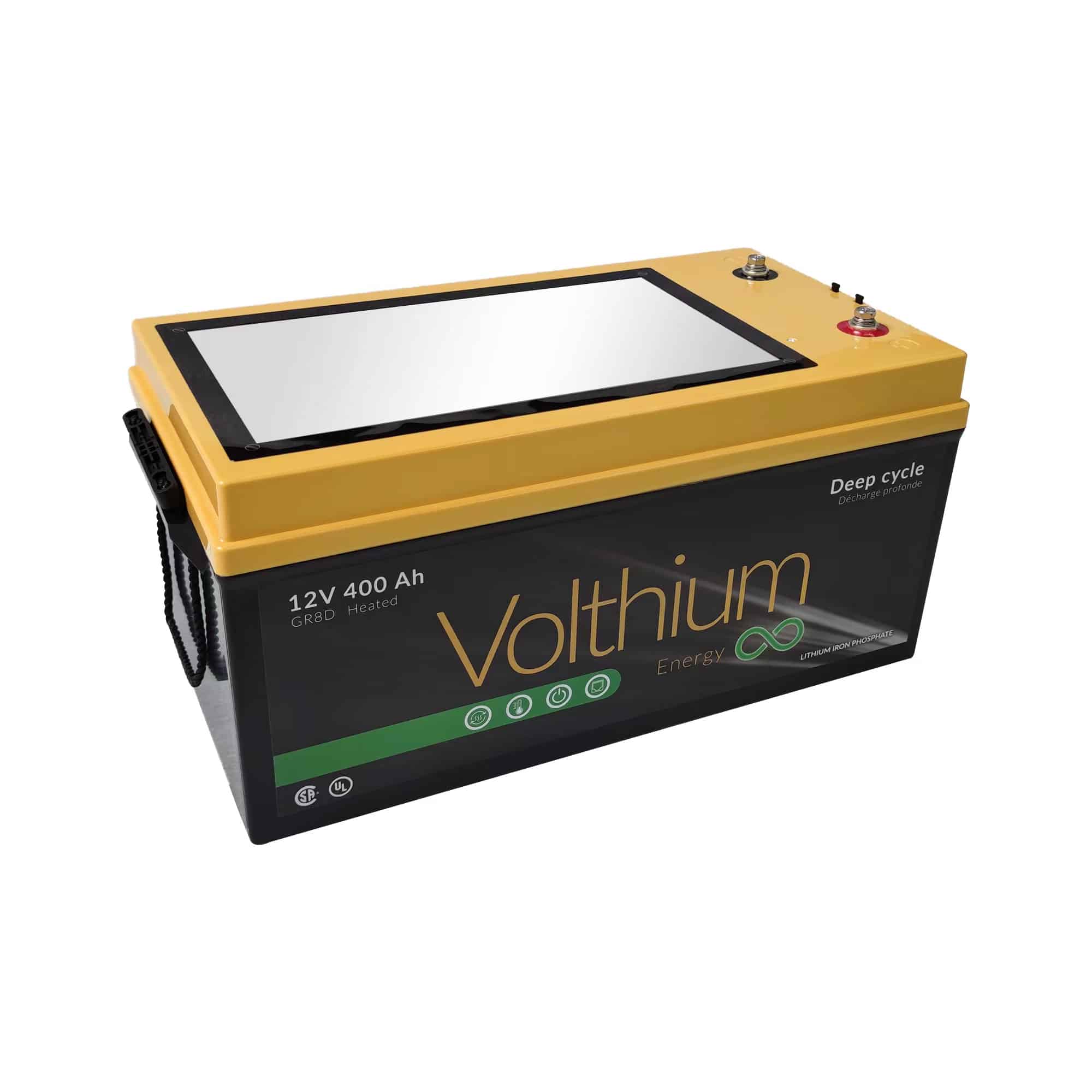

There 12V400AH LiFePO4 battery Volthium's 8D format ABS is manufactured especially for customers of boats, sailboats, motor vehicles and industrial applications.

Volthium 12V400AH Batteries, with or without an integrated heating system, meet ABYC standards, including clause E-13, relating to communication.

In fact, the batteryintegrates communication allowing the customer to set an audible and visual alert before the batteries fall into protection. Thanks to their cell phone and the Volthium Monitor application, the customer will be able to define an alert for a specific %SOC, of their choice, in addition to determining an alert for Warning for high temperature, and low temperature. This feature is available on several Volthium Batteries. In addition,12V400AH batteries are CSA UL1973certified.

The battery is designed for energy storage banks ranging from 5kWh to 20 kWh.

Also available in self-heating version (Dual Technology): 12V 400AH self-heating battery .

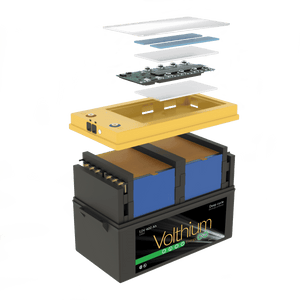

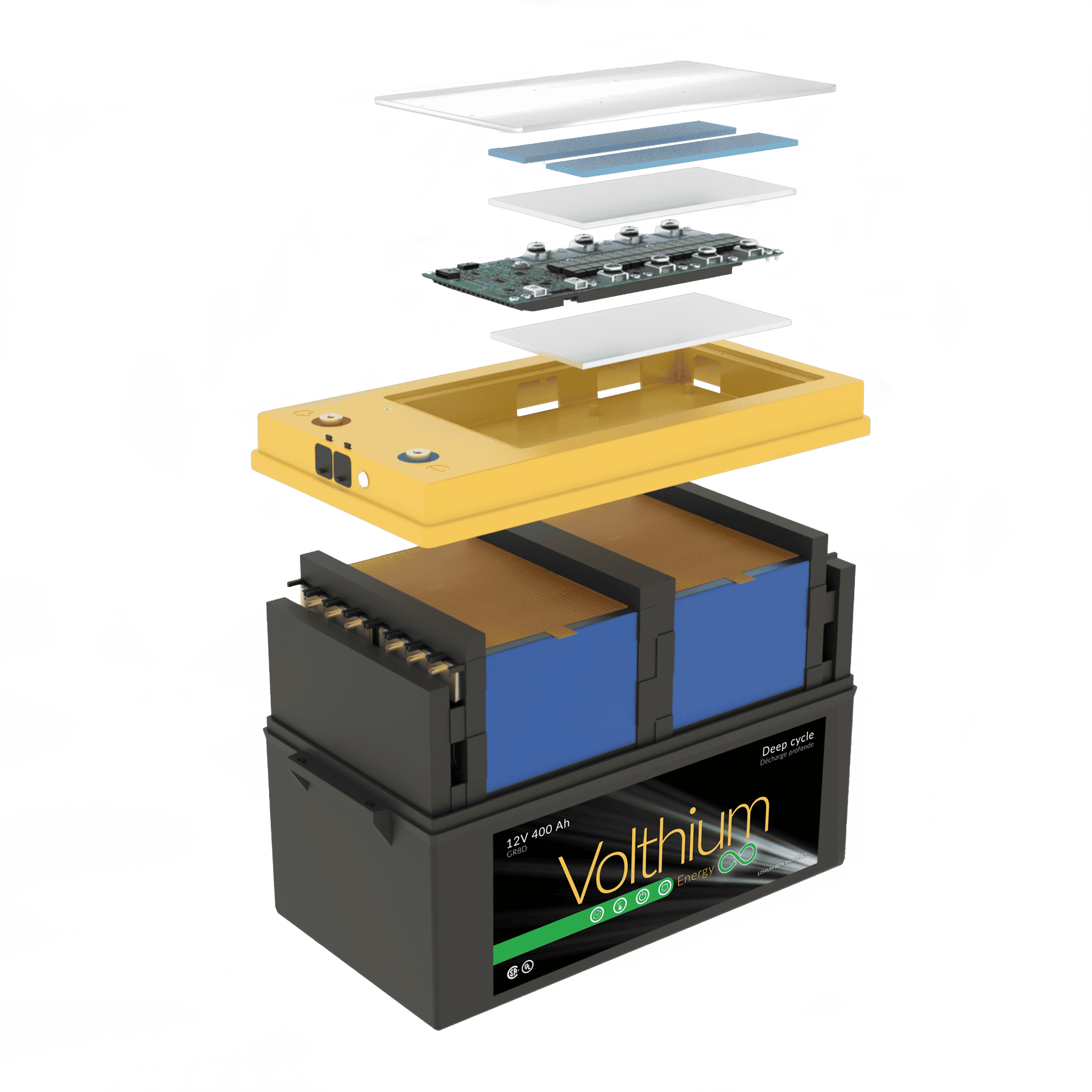

These batteries have the particularity of having a accessible and reserved room for the BMS. This makes them repairable if necessary, and allows the lifespan of the cells to be extended by limiting the transmission of heat to them. In addition, a private room allows you to increase the usable temperature range of these batteries.

In addition, this lithium battery has an integrated cooling system allowing heat to escape from the battery via its conductive aluminum plate. The heat sink further increases the operating range in terms of temperature, while promoting better performance in terms of the integrated BMS. In addition, it is possible to attach an additional cooling system. Another Volthium exclusive.

This new generation of batteries is also equipped with a stainless steel button, which allows discharging to be deactivated, while leaving recharging activated. Extremely practical when you want to leave the batteries connected to the solar system during storage, while eliminating the fear of them being drained by parasitic discharges.

This brand new battery, whose housing is exclusive to Volthium, has 2x RJ45 ports , whose pins are gold-plated, allowing communication on the RS485 protocol . This connection is also used to transmit internal battery information to the Victron environment (on their VE.CAN protocol). To do this, get the Volthium HUB accessory , another exclusive resulting from our internal and exclusive development.

Additionally, the RJ45 connector allows you to add the Volthium Bluetooth transmitter , which can support the management of up to 4 batteries when paired with the HUB.

Not only is this LiFePO4 battery vibration resistant, it also has a discharge range that is superior to the competition. In fact, this battery can be discharged down to -25 degrees , instead of -20 degrees for the competition. And if you opt for the self-heating version, it can be recharged down to -40 degrees . This innovation is possible because the cells in Volthium batteries come from the automotive industry.

Guarantee 10 years, useful life around 15 years and more.

Average operation beyond 6000 cycles.

Certifications : Assemblage complet : UL1973 & ABYC | Cellules UL1642, UL1973, IEC62619, IEC62660, CSA UL9540A.

BMS :

The core of the BMS is produced by the American company Texas Instrument. This manufacturer of BMS microcontrollers is recognized worldwide in the field of electric automobiles, in addition to being known for its long-standing collaboration with NASA and the American army.  The programming and communication protocols are entirely developed by our engineers in Quebec.

Cells:

The quality of LFP cells is essential. In fact, it is what ensures you have a durable product whose long-term performance will be faithful.

The 24V ABS solar storage batteries are equipped with GRADE A+ prismatic cells, manufactured by Volkswagen Group.

Engineering:

A true pillar, bringing together the strength of each of the parts making up the product. Our engineering is distinguished by the choice of the best components from each industry, with the aim of obtaining the best final product, scalable to future needs and impossible to compete with. The continuous integration of new communication protocols, combined with the tailor-made development established for customers, in addition to integrating technologies perfectly suited to our Canadian environment, makes Volthium a benchmark in terms of design quality.

MAIN FEATURES

• CSA UL1973 certification for complete assembly
• Certification ABYC
• Cooling system
• Access to the BMS (reserved room)
• Switch to deactivate the discharge while keeping the charge possible
• RS485 & Victron VE.CAN communication (RJ45 communication port; compatible with Volthium-Victron accessories)
• Possible discharge down to -30 degrees
• Limited 10-year warranty
• Continuous discharge current of 200A (250A for 75 min)
• Peak 300A (3sec)
• Up to 4 batteries in series (up to 51.2V)
• Protection against cold load
• Quebec engineering
• Weight of 104 pounds

Dimensions (LxWxH)

20.47 X 10.55 X 9.6 in

INCLUS

• 1 X Battery 12V 400AH
